  • Analogue Timer

    AH3, AH3-S
    download icon
    AH3, AH3-S
    Characteristic
    • Using CMOS IC, high reliability and stability
    • Wide variety of time ranges (0.1sec to 100hrs)
    • Two LED'S provids status indication for power ON and time UP
    • High repeat accuracy±1%
    • Offered in a wide range of AC or DC operating voltage
    • CE certified

  • Analogue Timer

    AH3-N, AH3-SN, AH3-YN
    download icon
    AH3-N, AH3-SN, AH3-YN
    Characteristic
    • Using CMOS IC, high reliability and stability
    • Wide variety of time ranges (0.1sec to 100hrs)
    • Bi-Color LED provids status indication for power ON and time UP
    • High repeat accuracy±1%
    • Offered in a wide range of AC or DC operating voltage
    • Output contact Mode A (2C) or Mode B (1A1C) select by slide switch
    • CE certified

  • Analogue Timer

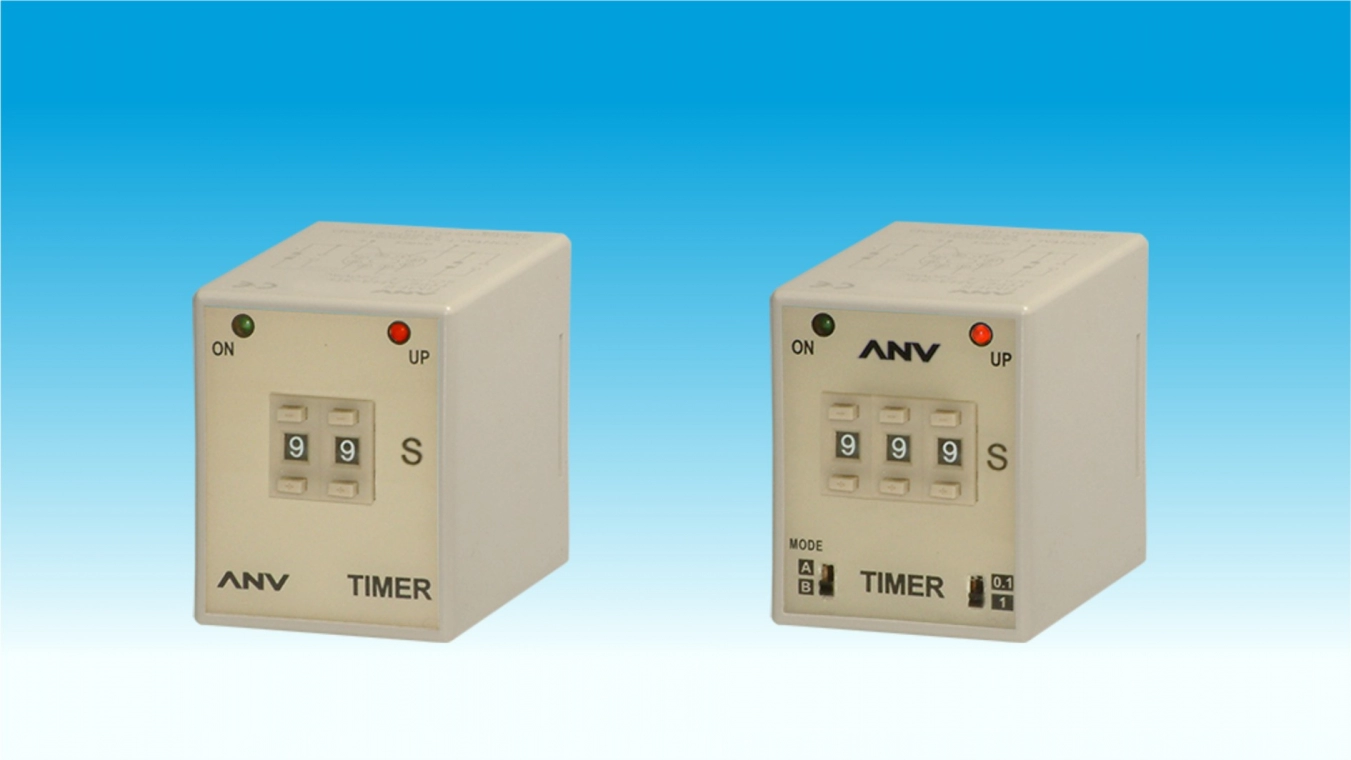

    AH3-D, AH3-D3, AH3-ND, AH3-ND3
    download icon
    AH3-D, AH3-D3, AH3-ND, AH3-ND3
    Characteristic
    • 2,3 pushweel switch setting
    • Using CMOS IC, high reliability and stability
    • Two LED'S provids status indication for power ON and time UP
    • 9.9S/99S, 9.9M/99M, 9.9H/99H (AH3-ND)，99.9S/999S, 99.9M/999M, 99.9H/999H (AH3-ND3)
    • Offered in a wide range of AC or DC operating voltage
    • Output contact Mode A (2C) or Mode B (1A1C) select by slide switch (AH3-ND，AH3-ND3)
    • CE certified

  • Analogue Timer

    H3M, H3M-S
    download icon
    H3M, H3M-S
    Characteristic
    • Using CMOS IC, high reliability and stability
    • Offered in a wide range of AC or DC operating voltage
    • 7 timing series available (A, B, C, D, E, F, G), from 1sec to 100hrs
    • Output contact 2C delay or 1C delay with 1C instantaneous can select by pushing “MODE” switch to A or B
    • Bi-Color LED provids status indication for power ON and time UP
    • H3M-□ can use adapter (Type Y-40) for flush mount
    • CE certified

  • Analogue Timer

    H3MT, H3MT-S
    download icon
    H3MT, H3MT-S
    Characteristic
    • Using CMOS IC, high reliability and stability
    • Wide operating voltage AC/DC 24~240V
    • 7 timing series available (A, B, C, D, E, F, G), from 1sec to 100hrs
    • Output contact 2C delay or 1C delay with 1C instantaneous can select by pushing “MODE” switch to A or B
    • Bi-Color LED provids status indication for power ON and time UP
    • H3MT-□ can use adapter (Type Y-40) for flush mount
    • CE certified

  • Analogue Timer

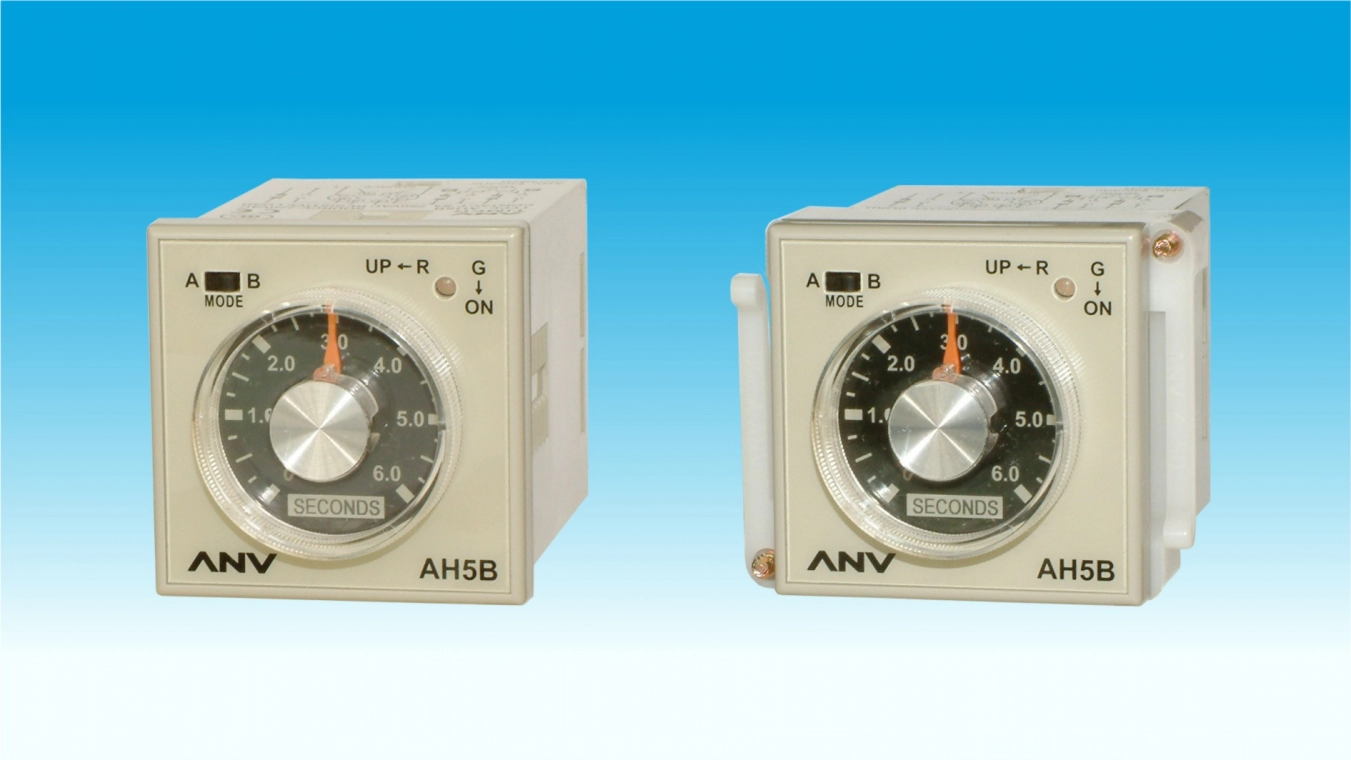

    AH5B
    download icon
    AH5B
    Characteristic
    • DIN Size W48 x H48mm
    • Using CMOS IC, high reliability and stability
    • Offered in a wide range of AC or DC operating voltage
    • Wide variety of time ranges (0.1sec to 60hrs)
    • Output contact 2C delay or 1C delay with 1C instantaneous can select by pushing “MODE” switch to A or B
    • Bi-Color LED provids status indication for power ON and time UP
    • Flush mount with Type Y-50+P3G-08 and Surface mount with Type P2CF-08 Socket
    • CE certified

  • Analogue Timer

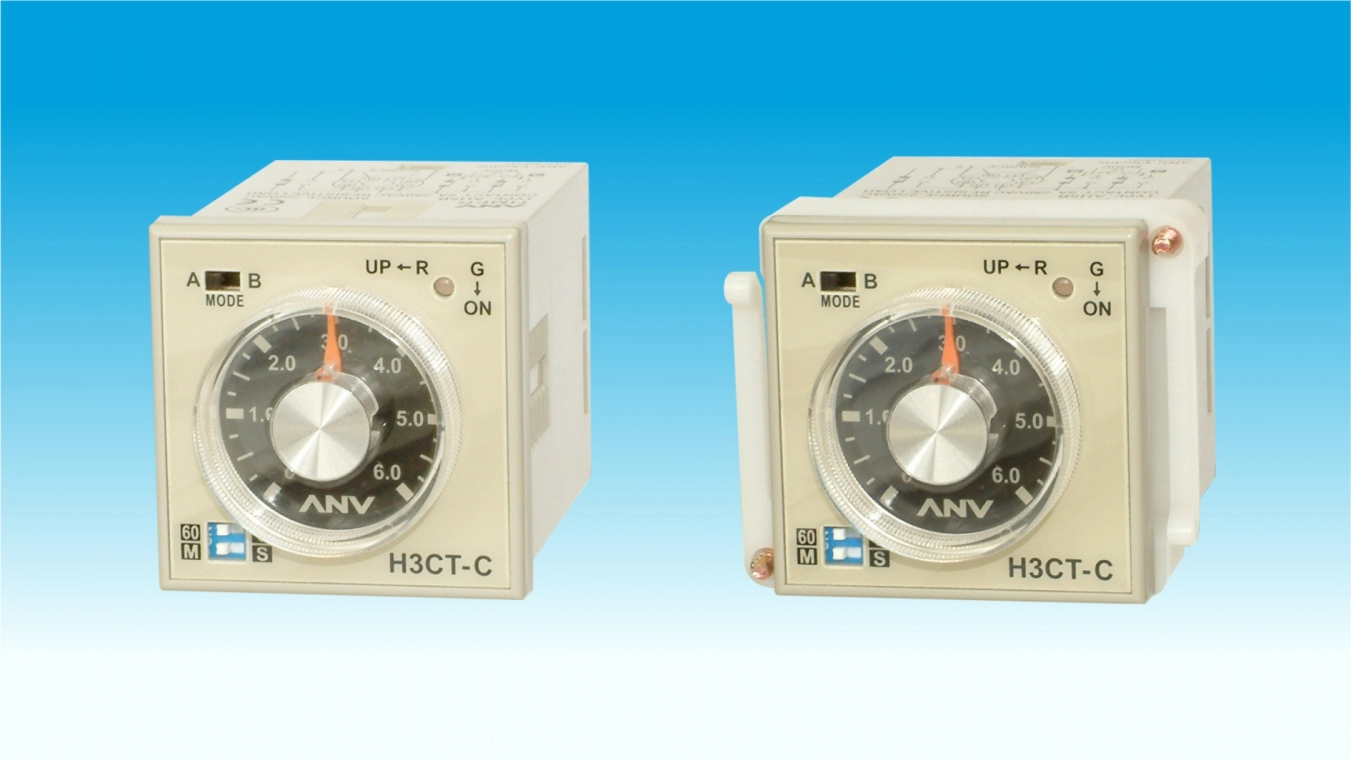

    H3CT, H3CT-S
    download icon
    H3CT, H3CT-S
    Characteristic
    • DIN Size W48 x H48mm
    • Using CMOS IC, high reliability and stability
    • Wide operating voltage AC/DC 24~240V (H3CT-□) or fixed voltage (H3CT-□S)
    • 7 timing series available (A, B, C, D, E, F, G), from 1sec to 100hrs
    • Output contact 2C delay or 1C delay with 1C instantaneous can select by pushing “MODE” switch to A or B
    • Bi-Color LED provids status indication for power ON and time UP
    • Flush mount with Type Y-50+P3G-08 and Surface mount with Type P2CF-08 Socket
    • CE certified

  • Analogue Timer

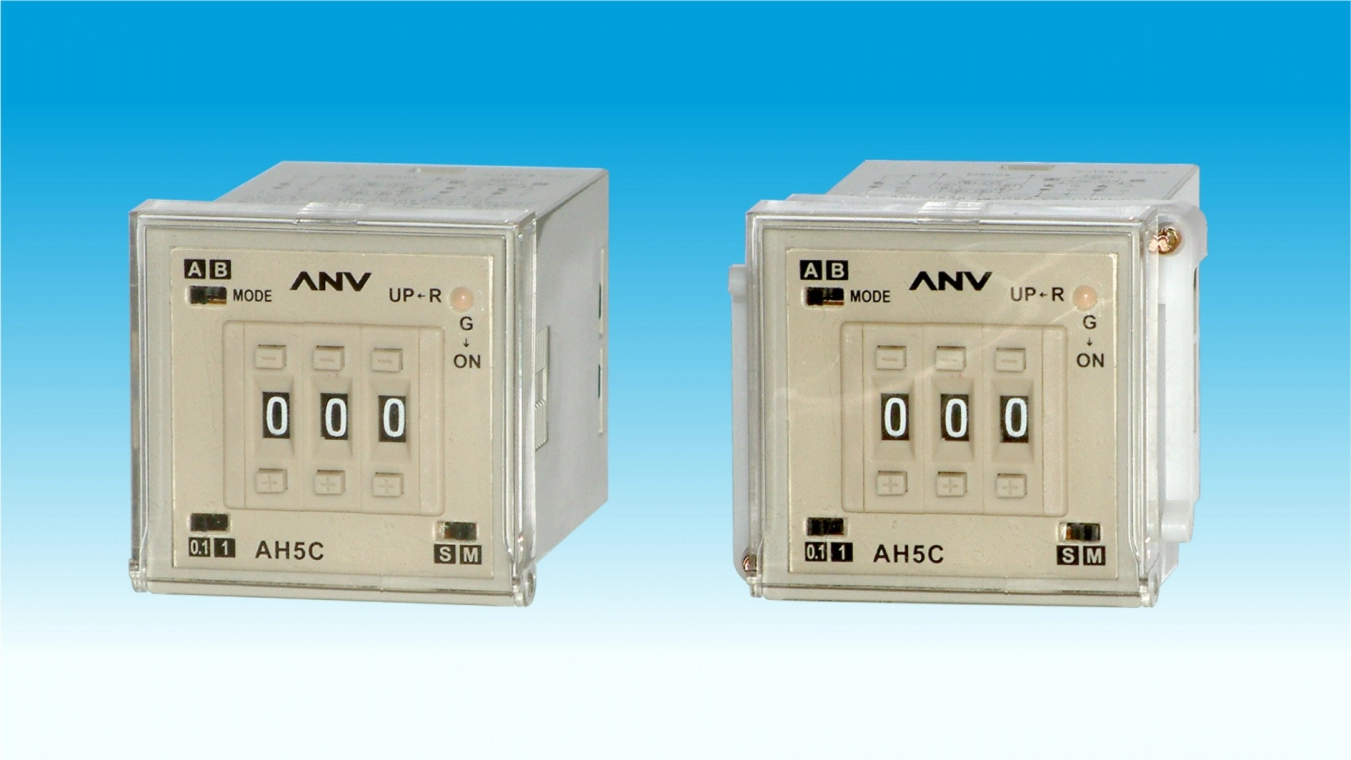

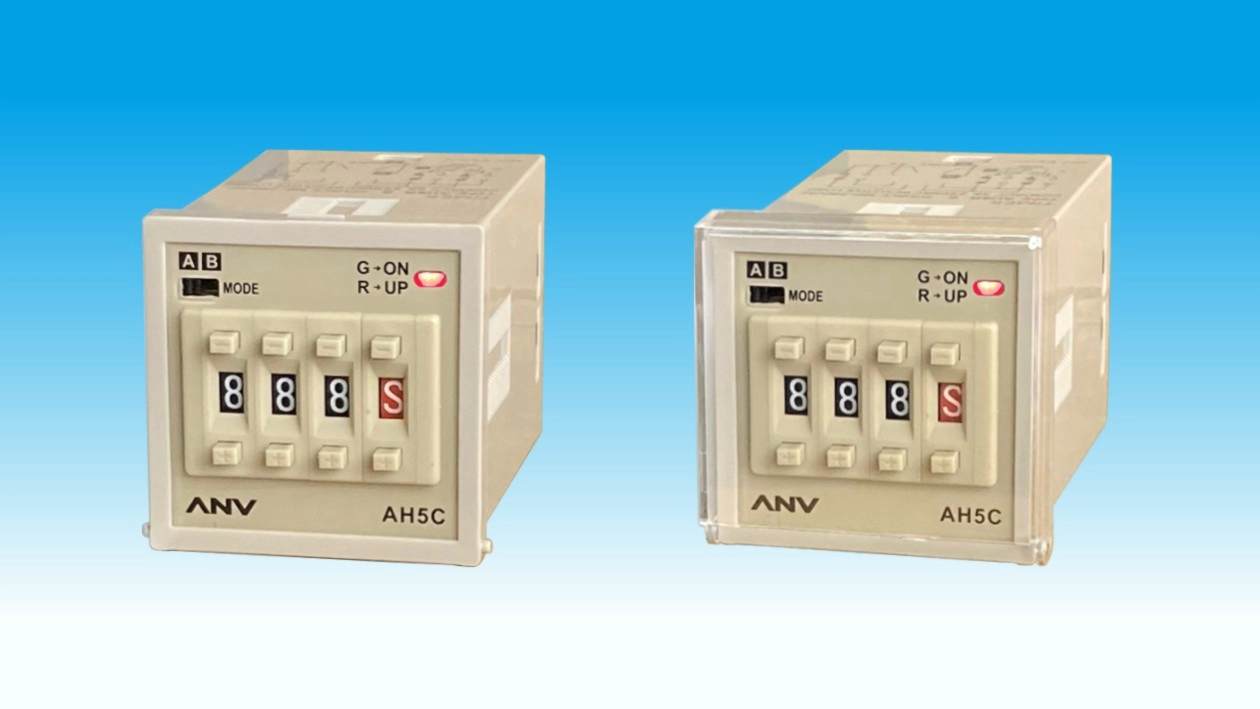

    AH5C
    download icon
    AH5C
    Characteristic
    • DIN Size W48 x H48mm
    • Three pushweel switch setting Timer
    • Using CMOS IC, high reliability and stability
    • Four time ranges SM: 99.9S/999S/99.9M/999M or MH: 99.9M/999M/99.9H/999H can select by slide switch
    • Output contact 2C delay or 1C delay with 1C instantaneous can select by pushing “MODE” switch to A or B
    • Bi-Color LED provids status indication for power ON and time UP
    • Flush mount with Type Y-50+P3G-08 and Surface mount with Type P2CF-08 Socket
    • CE certified

  • Analogue Timer

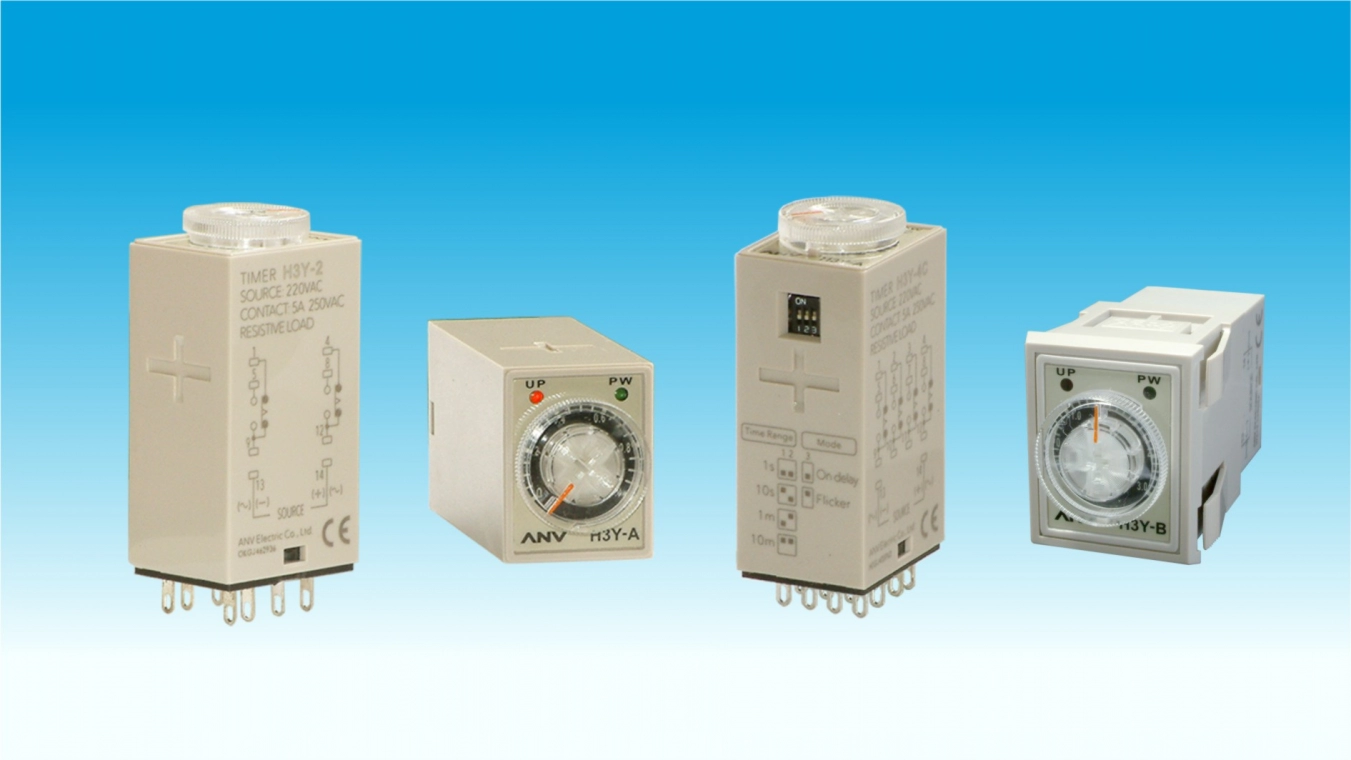

    H3Y-2, H3Y-2L, H3Y-4
    download icon
    H3Y-2, H3Y-2L, H3Y-4
    Characteristic
    • Using CMOS IC, high reliability and stability
    • 6 timing series available (A, B, C, D, E, F), from 1sec to 60hrs (H3Y-2□, H3Y-2L□, H3Y-4□, H3Y-2V□, H3Y-2LV□, H3Y-4V□)
    • Flicker Relay can select by DIP switch (H3Y-2□, H3Y-2L□, H3Y-4□)
    • Wide variety of time ranges (1sec to 60hrs) (H3Y-2, H3Y-2L, H3Y-4)
    • Two output contacts (H3Y-2, 2□, H3Y-2L, 2L□) or Four output contacts (H3Y-4, 4□)
    • Bi-Color LED provids status indication for power ON and time UP
    • Wide operating voltage AC/DC 100~240V or 12~24V(H3Y-2V□, H3Y-2LV□, H3Y-4V□)
    • Use adapter (Type Y-20) for Flush mount
    • CE certified

  • Analogue Timer

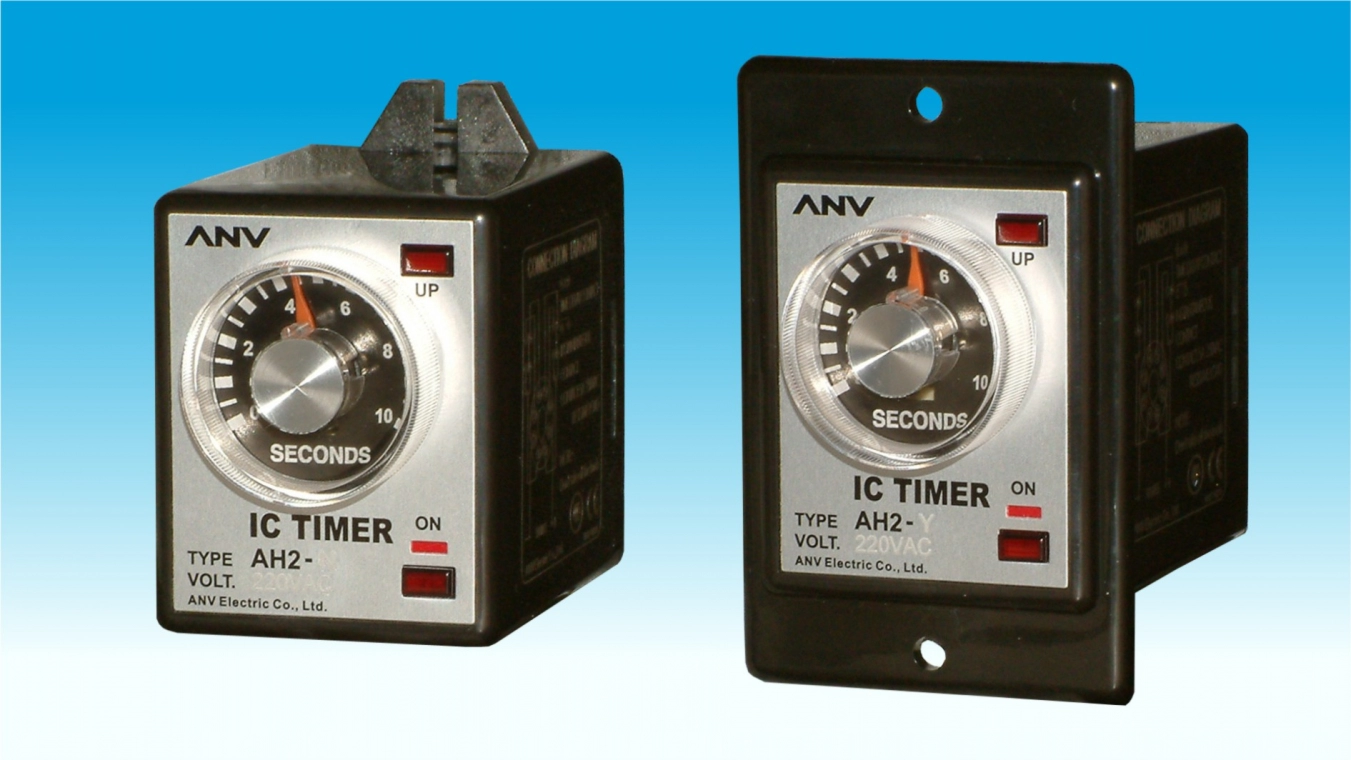

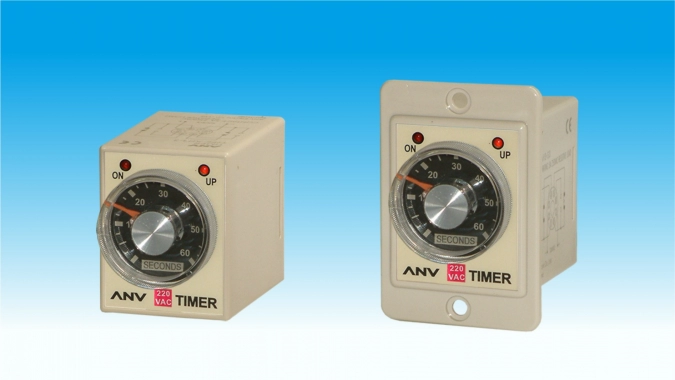

    AH2-N, AH2-Y
    download icon
    AH2-N, AH2-Y
    Characteristic
    • Using CMOS IC, high reliability and stability
    • Large transparent for easy adjustment and monitor
    • Wide variety of time ranges (0.1sec to 100hrs)
    • Offered in a wide range of AC or DC operating voltage
    • Two LED'S provids status indication for power ON and time UP
    • Flush mount (-Y) with Type P3G-08 or US-08 and Surface mount (-N) with Type 8PFA socket
    • CE certified

  • Analogue Timer

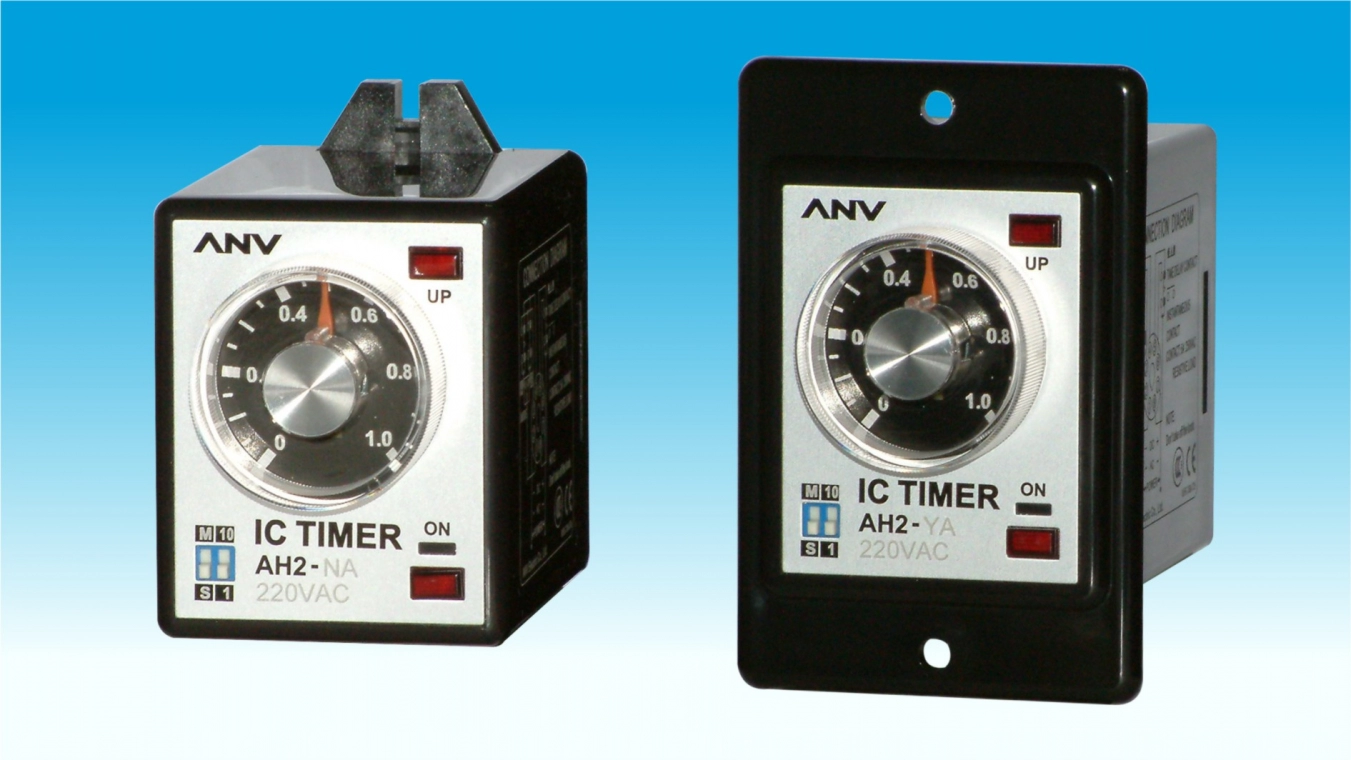

    AH2-NA, AH2-YA
    download icon
    AH2-NA, AH2-YA
    Characteristic
    • Using CMOS IC, high reliability and stability
    • Large transparent for easy adjustment and monitor
    • 7 timing series available (A, B, C, D, E, F, G), from 1sec to 100hrs
    • Offered in a wide range of AC or DC operating voltage
    • Wide operating voltage AC/DC 24~240V (AH2-NV□, AH2-YV□)
    • Output contact 2C delay or 1C delay with 1C instantaneous can select by pushing “MODE” switch to A or B
    • Two LED'S provids status indication for power ON and time UP
    • Flush mount (-Y) with Type P3G-08 or US-08 and Surface mount (-N) with Type 8PFA socket
    • CE certified

  • Analogue Timer

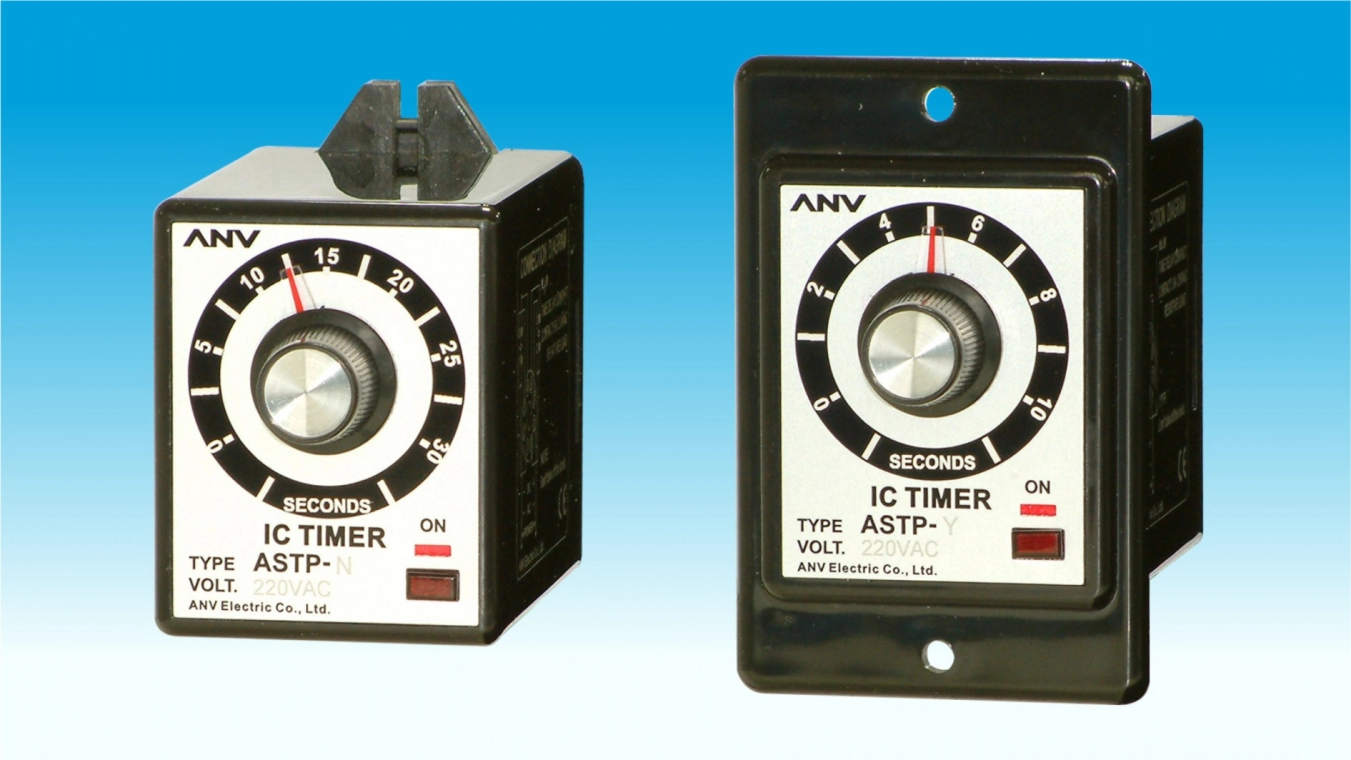

    ASTP-N, ASTP-Y
    download icon
    ASTP-N, ASTP-Y
    Characteristic
    • Using CMOS IC, high reliability and stability
    • Wide variety of time ranges (0.1sec to 100hrs)
    • Offered in a wide range of AC or DC operating voltage
    • Flush mount (-Y) with Type P3G-08 or US-08 and Surface mount (-N) with Type 8PFA socket
    • CE certified

  • Analogue Timer

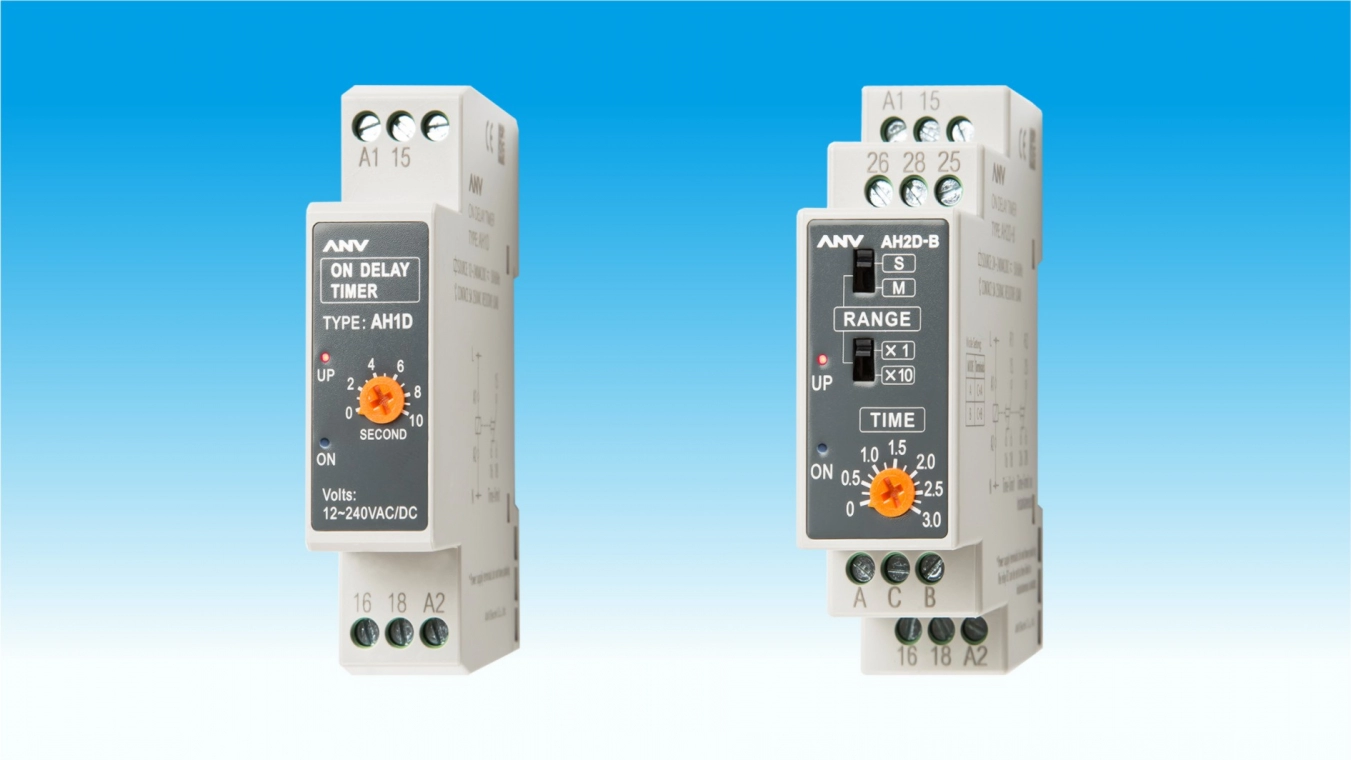

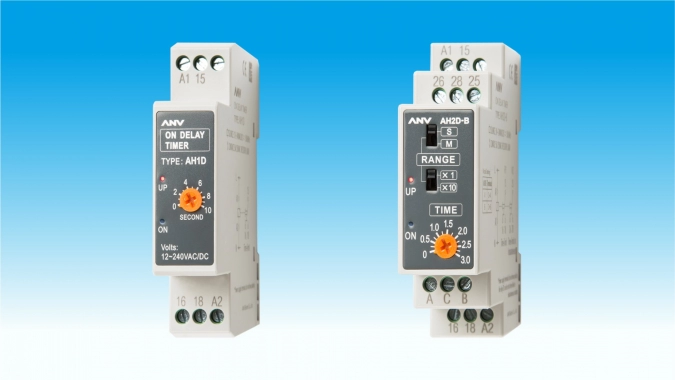

    AH1D, AH2D
    download icon
    AH1D, AH2D
    Characteristic
    • Using CMOS IC, high reliability and stability
    • 7 timing series available (A, B, C, D, E, F, G), from 1sec to 100hrs
    • Output contact 2C delay or 1C delay with 1C instantaneous can switch to A or B mode
    • Bi-Color LED provids status indication for power ON and time UP
    • Wide operating voltage AC/DC 24~240V
    • For mounting on DIN-rail
    • CE certified

  • Analogue Timer

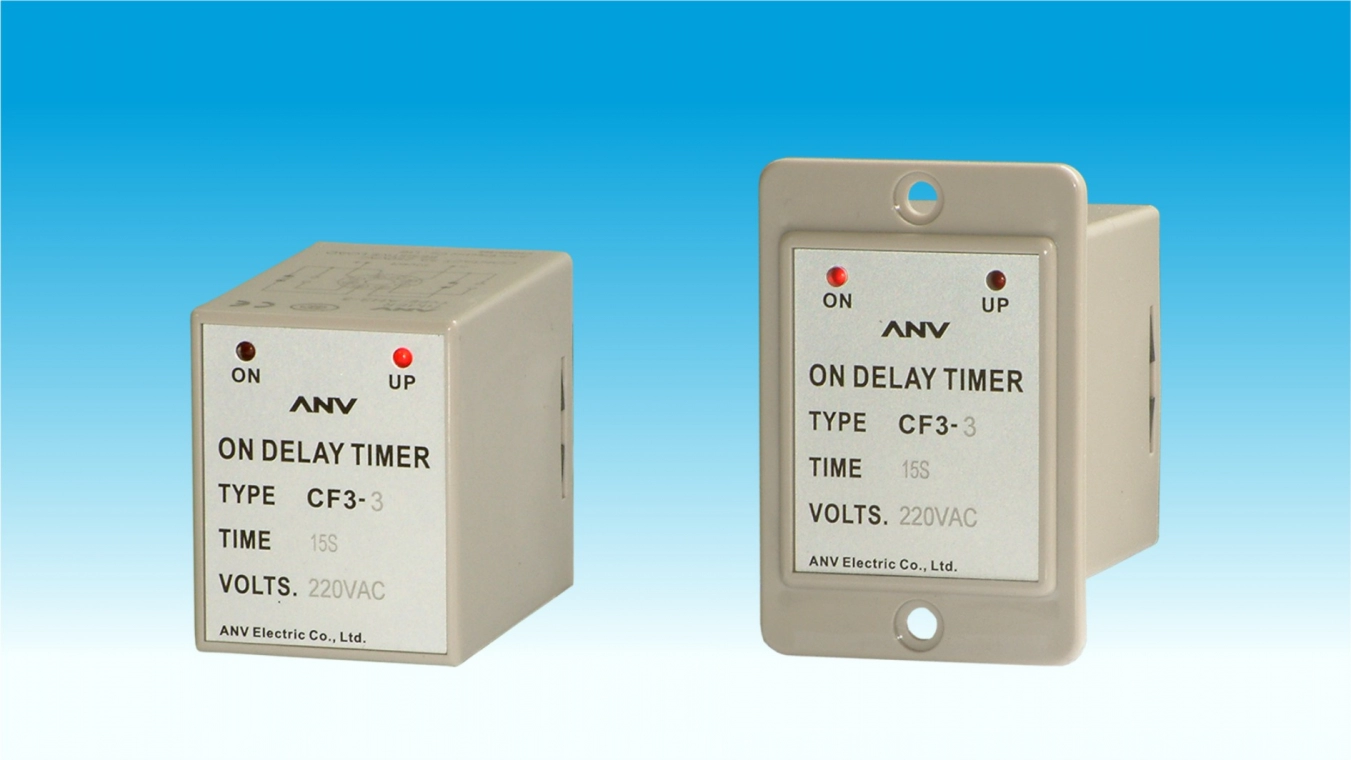

    CF3, CF3-S
    download icon
    CF3, CF3-S
    Characteristic
    • Using CMOS IC, high reliability and stability
    • Fixed time 0.1sec~100hrs can depend on user requirement
    • High repeat accuracy ±1%
    • Two LED'S provids status indication for power ON and time UP
    • Short resetting time 100ms max
    • CE certified

  • Analogue Timer

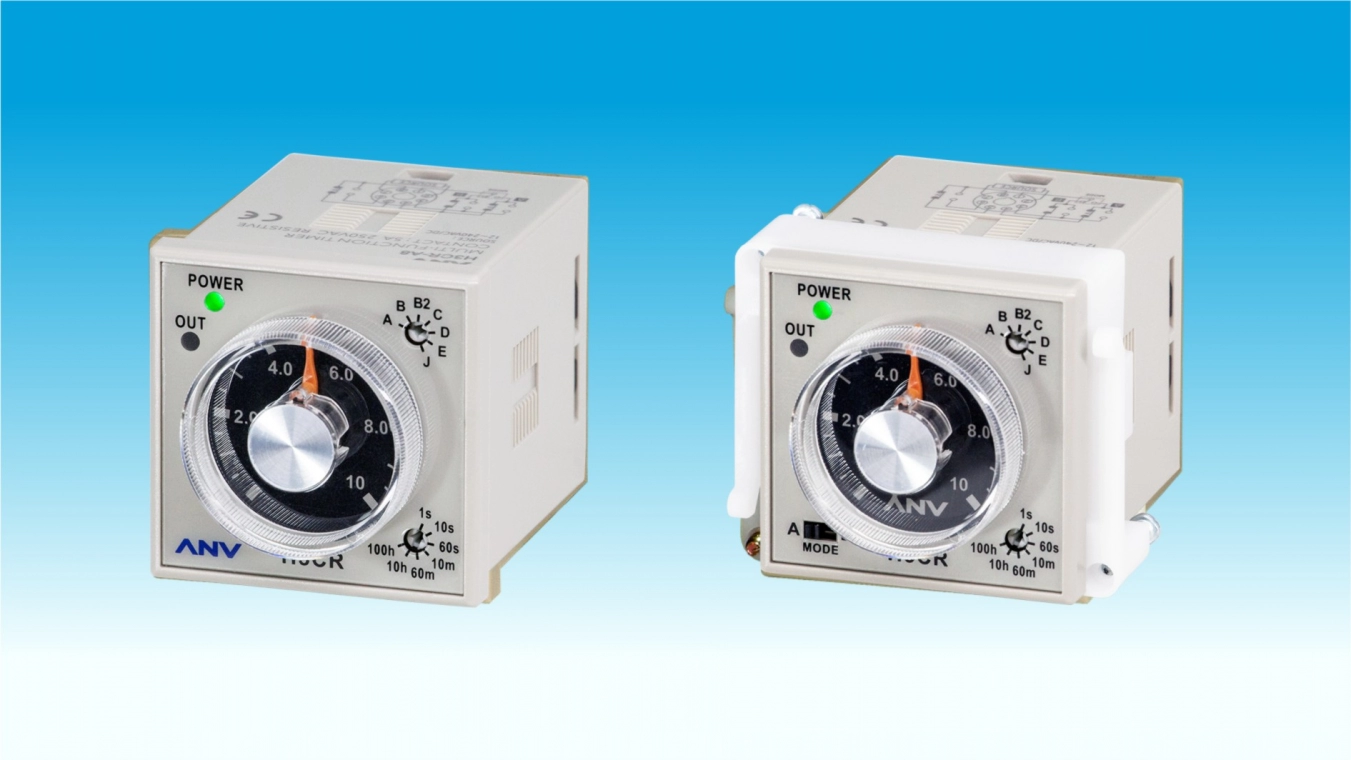

    H3CR
    download icon
    H3CR
    Characteristic
    • Wide operating voltage range 12~240VAC/DC
    • 7 field-selectable output modes for various applications
    • 7 field-selectable time range, longest time 100 hours
    • Short body design, about 68mm
    • A/B mode slide switch(H3CR-A8)

  • Analogue Timer

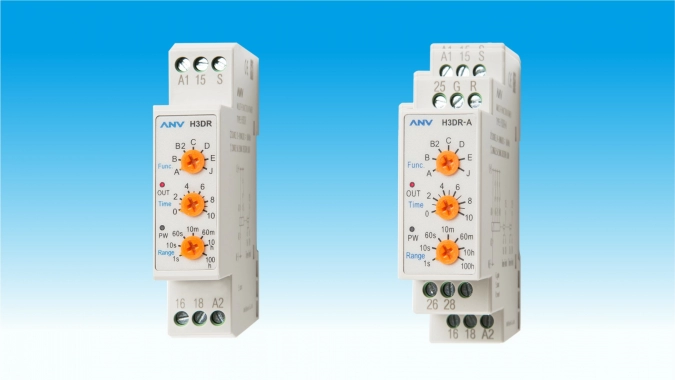

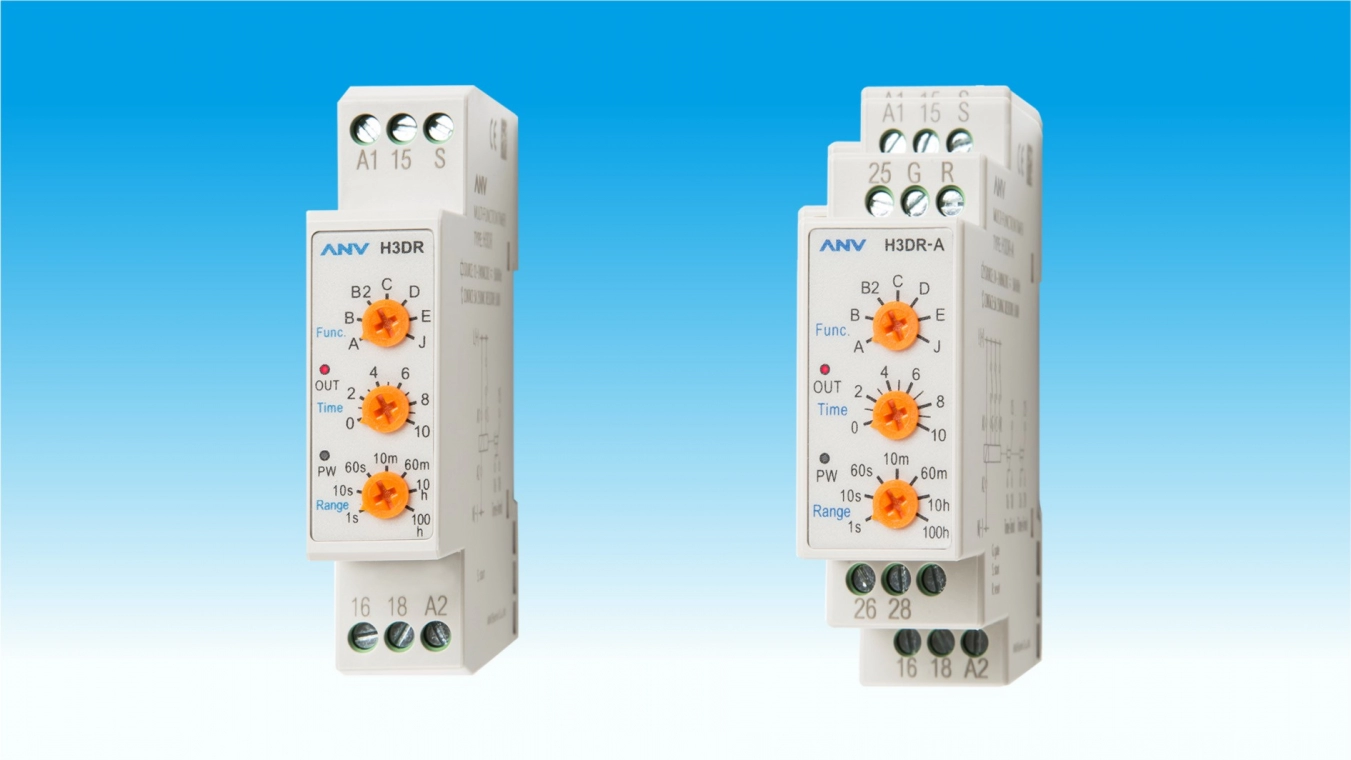

    H3DR
    download icon
    H3DR
    Characteristic
    • Wide operating voltage range 12~240VAC/DC
    • 7 field-selectable output modes for various applications
    • 7 field-selectable time range, longest time 100 hours
    • For mounting on DIN-rail
